WEC TYPES   -   there are at least 9 different types of Wave Energy Converters  (WECs)

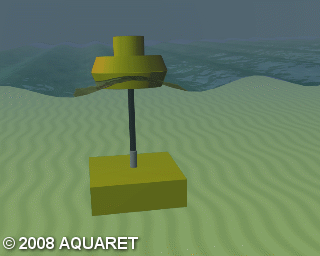

Type 1  Point Absorber (PA)



A point absorber is a floating structure which absorbs energy from all directions through its movements at/near the water surface. It converts the motion of the buoyant top relative to the base into electrical power. The power take-off system may take a number of forms, depending on the configuration of displacers/reactors, such as hydraulic power take off, or direct drive linear generators

Patent examples

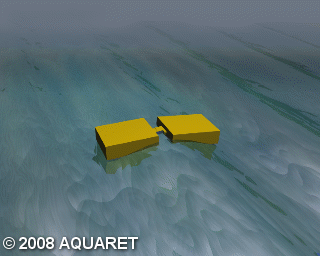

Type 2  Attenuator



An attenuator is a floating device which operates parallel to the wave direction and effectively rides the waves.
These devices capture energy from the relative motion of the two arms as the wave passes them.  Salters Duck and the Pelamis "snake" are examples of this type.

Patent examples

Type 3  Oscillating Wave Surge Converter (OWS)



Oscillating wave surge converters extract energy from wave surges and the movement of water particles within them.

The arm oscillates as a pendulum mounted on a pivoted joint in response to the movement of water in the waves.

Patent examples

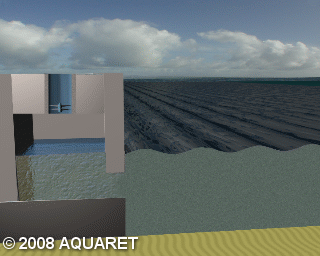

Type 4  Oscillating Water Column (OWC)



An oscillating water column is a partially submerged, hollow structure. It is open to the sea below the water line, enclosing a column of air on top of a column of water.

Waves cause the water column to rise and fall, which in turn compresses and decompresses the air column. This trapped air is allowed to flow to and from the atmosphere via a turbine, which usually has the ability to rotate regardless of the direction of the airflow.

The rotation of the air turbine is used to generate electricity.

Patent examples

Type 5  Overtopping/Terminator



Overtopping devices capture water as waves break into a storage reservoir. The water is then returned to the sea passing through a conventional low-head turbine which generates power.
An overtopping device may use ‘collectors’ to concentrate the wave energy.

Patent examples

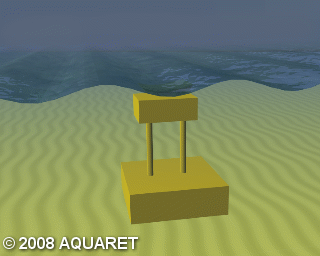

Type 6  Submerged Pressure Differential



Submerged pressure differential devices are typically located near shore and attached to the seabed. The motion of the waves causes the sea level to rise and fall above the device, inducing a pressure differential in the device.

The alternating pressure pumps fluid through a system to generate electricity.

Patent examples

Type 7   Bulge Wave



Bulge wave technology consists of a rubber tube filled with water, moored to the seabed heading into the waves. The water enters through the stern and the passing wave causes pressure variations along the length of the tube, creating a ‘bulge’.

As the bulge travels through the tube it grows, gathering energy which can be used to drive a standard low-head turbine located at the bow, where the water then returns to the sea.

Patent examples

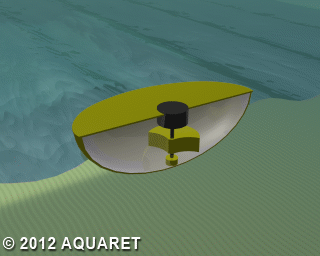

Type 8   Rotating Mass


Two forms of rotation are used to capture energy by the movement of the device heaving and swaying in the waves.

This motion drives either an eccentric weight or a gyroscope causes precession.

In both cases the movement is attached to an electric generator inside the device.

Patent examples not available

Type 9   OTHER


This covers those devices with a unique and very different design to the more well-established types of technology or if information on the device’s characteristics could not be determined.

For example the Wave Rotor, is a form of turbine turned directly by the waves, a variation on the Tidal Rotor.

Flexible structures have also been suggested, whereby a structure that changes shape/volume is part of the power take-off system.



Patent examples not available
